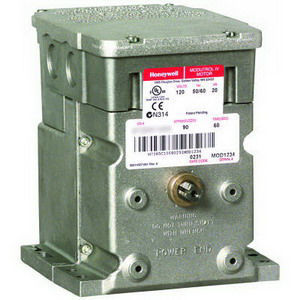

Honeywell M6284D Electric Actuator, Control Signal: Floating, Fail Safe Mode: Non-Spring Return, 150 Inch-lb, 24 V, 30 - 60 sec, Adjustable, 90 - 160 deg, Symmetrical Stroke, Dual Ended Shaft Motor, 15 VA Driving, 3/8 x 3/8 Inch Shaft, Quick Connect Terminals, -40 to 150 deg F, 6-7/16 Inch H x 5-1/2 Inch W x 7-5/16 Inch D, Includes: Electrically Isolated Feedback Potentiometer That Provides Shaft Position Indication
- Integral junction box provides NEMA 3 weather protection if motor is mounted in the upright position
- Motor and circuitry operate from 24 VAC
- Quick-connect terminals are standard--screw terminal adapter is available
- Adapter bracket for matching shaft height of older motors is available
- Motors have field adjustable stroke (90 to 160 deg)
- Integral auxiliary switches are available factory mounted, or can be field added
- All models have dual shafts (slotted and tapped on both ends)
- All models have auxiliary switch cams
- Fixed torque throughout the entire voltage range
- Motors are designed for either normally open or normally closed valves and dampers
