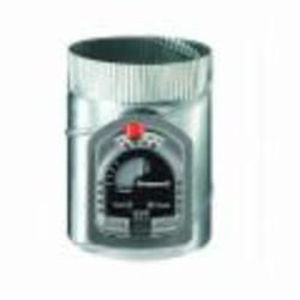

Honeywell ARD8TZ

Honeywell ARD TrueZONE Automatic Single Blade Zone Damper, 8 Inch, Round, 24 V, 90 deg Rotation, 2-Wire, Steel
SKU: 86470
Manufacturer part number: ARD8TZ
Manufacturer:

Honeywell


Please Sign In to display product price.
Honeywell ARD TrueZONE Zone Damper, Automatic, Single Blade, 8 Inch, Round, 24 V, 90 deg Rotation, 30 sec Power Open/10 sec Spring Return, Power Closed, Reversible, Spring Open Motor, 2-Wire, 40 - 140 deg F, Steel, Galvanized

The new TrueZONE Damper is a direct replacement for today's legacy dampers. With a more intuitive design, the TrueZONE damper allows for an easier installation with less troubleshooting. The TrueZONE damper also delivers an improved motor and gearing to insure long life and reliable operation even in high stress applications.

  • Features galvanized steel with single-blade damper, which closes off tightly against gasket for minimal leakage
  • Designated as power closed/spring return open damper for use with Honeywell Zoning Systems
  • Can be field-converted when used as an independent zone or for fresh air intake
  • Rated to operate up to 1 Inch wc
  • Male (crimped) and female (uncrimped) ends to connect to any rigid or flexible round duct
  • Fail-safe, normally open operation
  • Simple, easy-to-wire, two-wire installation with a third wire option M4 for LED open only light
  • Adjustable range stops that are simple to use and easier to understand
  • Mechanical position indicator for the damper blade
  • Push-in terminals
  • Quieter operation through improved internal design that allows for a slower return
  • With R8 insulation compatibility, the TrueZONE damper is designed to pass energy efficiency audits
  • Side or top motor or actuator mounting
  • M1 power, M6 common, M4 (optional)-LED indication terminals

Application: Controlling Circulating Air in Heating, Cooling and Venting System

Products specifications
Attribute nameAttribute value
Electrical Connection2-Wire
FinishGalvanized
ManufacturerHoneywell
MaterialSteel
Motor TypePower Closed, Reversible, Spring Open
Rotation Angle90 deg
SeriesARD, TrueZONE
ShapeRound
Size8 Inch
Temperature Rating40 - 140 deg F
Timing30 sec Power Open/10 sec Spring Return
TypeAutomatic, Single Blade
Voltage Rating24 V
