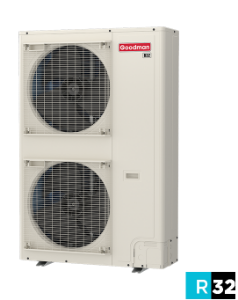

Goodman GZV9SA361C 3 Ton, Up to 21.0 SEER2, Up to 10.0 HSPF2, Heat Pump, R32, Swing Inverter Compressor, 2 x 0.32HP ECM Condenser Fan Motor, ⅜" Liq. ⅞" Suct., 25A 208-230/1, 37"W x 12-5/8"D x 56-5/16"H, 71 dBA, 265 lbs.
Goodman SD (Side Discharge) High-Efficiency, Ultimate, Variable-Speed, Inverter Driven R-32 Split System Heat Pump
All-Climate Heat Pump
High-Efficiency Split System Heat Pump
Inverter Driven
Up to 21 SEER2
A system that works smarter.
Revolutionary ComfortBridge™ technology is factory-installed into select Goodman brand gas furnaces and air handlers to ensure that the entire system operates at peak, energy-efficient performance. Simply put, communications technology that is typically located in a thermostat was moved from the wall and securely placed into the HVAC equipment!
Benefits
• Heavy-gauge galvanized steel cabinet with grille-style sound control side design
• Custom Ivory white powder-paint finish
• High corrosion (ZAM®), unpainted steel bottom frame and legs
• 500-hour salt-spray tested
• Wire fan discharge grille
Most Efficient Energy Star 2025 Certified
Products that are recognized as the Most Efficient of ENERGY STAR® in 2025 prevent greenhouse gas emissions by meeting rigorous energy efficiency performance levels set by the U.S. Environmental Protection Agency.
Standard Features
• Variable-speed swing compressors
• Strong heating capacity
• Quiet digitally commutated fan motor
• High-density compressor sound blanket
• Compatible with Goodman GTST connected thermostat and other Goodman communicating equipment
• Proprietary control algorithmic logic
• In communicating mode, only two low voltage wires to outdoor unit required
• Diagnostic indicator lights, seven-segment LED display, and fault code storage
• Proprietary Inside intelligence for diagnostics
• Quiet-mode - provides enhanced acoustical comfort, up to 3 different sound levels (as low as 45dBA)
• Field-selectable boost mode increases compressor speed during unusually high loads
• Field-installed bi-flow filter drier
• Coil and ambient temperature sensors
• Suction/Discharge Pressure transducer
• Sweat connection service valves with easy access to gauge ports
• Advanced water-shedding drain pan
• 3-Stage Heater Kit Available as a Field Installed Option
• Hot gas base pan eliminates extra drain pan heater down to 5°F
• Hot start technology
• AHRI Certified; ETL Listed
Cabinet Features
• Heavy-gauge galvanized steel cabinet with grille-style sound control side design
• Custom Ivory white powder-paint finish
• High corrosion (ZAM®), unpainted steel bottom frame and legs
• 500-hour salt-spray tested
• Wire fan discharge grille
• Top and side maintenance access
• When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
Product Limited Warranty
This unit is covered by a 10-Year Unit Replacement Limited Warranty and 10-Year Parts Limited Warranty, and a One-time Compressor Replacement coverage is available to the original homeowner for years 11-99 after the installation date through an ASURE Extend Service Plan. Complete warranty available from www.goodmanmfg.com. To receive 10-Year Unit Replacement Limited Warranty and 10-Year Parts Limited Warranty, online registration must be completed within 60 days of installation. Complete details about the Extended Service Plan options available from your ASURE dealer.
One-time Compressor Replacement coverage is available to the original homeowner for years 11-99 after the installation date through an ASURE Extend Service Plan
