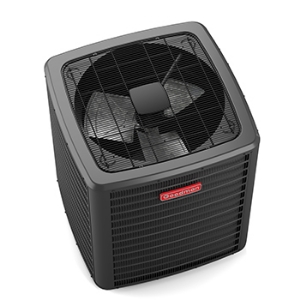

Goodman GSXV903610 3 Ton, Up to 20 SEER2 Air Conditioner, 32800 Max Cooling BtuH, Inverter Swing Compressor, 1/2HP ECM Condenser Fan Motor, ⅜" Liq. ⅞" Suct., 25A 208/230-1, 35-1/2"W x 35-1/2"D x 38-1/4"H, 72 dBA, 221 lbs.
GSXV9
Split System Air Conditioner
High-Efficiency, Variable-Speed, Inverter Driven
Up to 22.5 SEER2
2 to 5 Tons
A system that works smarter.
Revolutionary ComfortBridge™ technology is factory-installed into select Goodman brand gas furnaces and air handlers to ensure that the entire system operates at peak, energy-efficient performance. Simply put, communications technology that is typically located in a thermostat was moved from the wall and securely placed into the HVAC equipment!
The variable speed swing or scroll compressor with inverter technology runs at from 0% to 100% capacity, depending on cooling/heating demand. This operational flexibility provides a great energy-efficient option when compared to a traditional, single-stage or two-stage units.
The top performance of a variable speed electronically commutated motor (ECM) allows for operation over a wide range of fan speeds, from 0% to 100%, depending on your airflow needs. It is a great energy-efficient option when compared to a traditional, single-speed or two-stage motors.
Designed to regulate and communicate with your ComfortBridge™ Controls System so you can remotely monitor and manage your heating and cooling system at any time, from anywhere with just an internet connection. Assists contractors in troubleshooting the system with improved diagnostic accuracy by utilizing indicator lights, seven-segment LED display, and fault code storage.
Energy Efficiency
Energy efficiency equates to cost savings. Your Goodman brand GSXV9 Air Conditioner offers up to 22.5 SEER2 energy-efficiency performance. Rated Most Efficient of ENERGY STAR® in 2023. Products that are recognized as the Most Efficient of ENERGY STAR® in 2023 prevent greenhouse gas emissions by meeting rigorousenergy efficiency performance levels set by the U.S. Environmental Protection Agency.
Product Limited Warranty
This unit is covered by a 10-Year Unit Replacement Limited Warranty and 10-Year Parts Limited Warranty, and a One-time Compressor Replacement coverage is available to the original homeowner for years 11-99 after the installation date through an ASURE Extend Service Plan. Complete warranty available from www.goodmanmfg.com. To receive 10-Year Unit Replacement Limited Warranty and 10-Year Parts Limited Warranty, online registration must be completed within 60 days of installation. Complete details about the Extended Service Plan options available from your ASURE dealer.
One-time Compressor Replacement coverage is available to the original homeowner for years 11-99 after the installation date through an ASURE Extend Service Plan
At Goodman, we believe in American dependability. Units are designed, engineered and assembled in the U.S.A.
Standard Features
• Variable-speed swing and scroll compressors
• High-density compressor sound blanket
• Integrated communicating ComfortBridge™ Technology
• Commissioning and diagnostics via indoor board Bluetooth with the CoolCloud™ phone and tablet application
• Variable-speed DC outdoor fan motor
• Control algorithmic logic
• In communicating mode, only two low voltage wires to outdoor unit required
• Diagnostic indicator lights, seven-segment LED display, and fault code storage
• Field-selectable boost mode increases compressor speed during unusually high loads
• Field-installed bi-flow filter drier
• Coil and ambient temperature sensors
• AHRI Certified; ETL Listed
Cabinet Features
• Heavy-gauge, galvanized-steel cabinet
• Removable grille-style top design compliant with UL 60335-2-40
• Venturi for increased velocity of airflow
• Baked-on powder-paint finish
• 500-hour salt-spray tested
• Wire fan discharge grille
• Steel louver coil guard
• Top and side maintenance access
• Sweat connection service valves with easy access to gauge ports
• Single-panel access to controls with space provided for field-installed accessories
