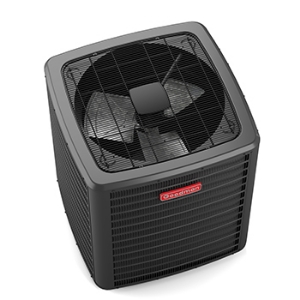

GSXV902410 Goodman 2 Ton, Up to 22.5 SEER2 Air Conditioner

Goodman GSXV902410 2 Ton, Up to 22.5 SEER2 Air Conditioner, Inverter Swing, 22600 Max Cooling BtuH
SKU: GMN-GSXV902410
Manufacturer part number: GSXV902410
Manufacturer:

Goodman Manufacturing


Please Sign In to display product price.

Goodman GSXV902410 2 Ton, Up to 22.5 SEER2 Air Conditioner, 22600 Max Cooling BtuH, Inverter Swing Compressor, 1/2HP ECM Condenser Fan Motor, ⅜" Liq. ¾" Suct., 20A 208/230-1, 35-1/2"W x 35-1/2"D x 38-1/4"H, 71 dBA, 210 lbs.

GSXV9
Split System Air Conditioner
High-Efficiency, Variable-Speed, Inverter Driven

Up to 22.5 SEER2
2 to 5 Tons

A system that works smarter.

Revolutionary ComfortBridge™ technology is factory-installed into select Goodman brand gas furnaces and air handlers to ensure that the entire system operates at peak, energy-efficient performance. Simply put, communications technology that is typically located in a thermostat was moved from the wall and securely placed into the HVAC equipment!

The variable speed swing or scroll compressor with inverter technology runs at from 0% to 100% capacity, depending on cooling/heating demand. This operational flexibility provides a great energy-efficient option when compared to a traditional, single-stage or two-stage units.

The top performance of a variable speed electronically commutated motor (ECM) allows for operation over a wide range of fan speeds, from 0% to 100%, depending on your airflow needs. It is a great energy-efficient option when compared to a traditional, single-speed or two-stage motors.

Designed to regulate and communicate with your ComfortBridge™ Controls System so you can remotely monitor and manage your heating and cooling system at any time, from anywhere with just an internet connection. Assists contractors in troubleshooting the system with improved diagnostic accuracy by utilizing indicator lights, seven-segment LED display, and fault code storage.

Energy Efficiency

Energy efficiency equates to cost savings. Your Goodman brand GSXV9 Air Conditioner offers up to 22.5 SEER2 energy-efficiency performance. Rated Most Efficient of ENERGY STAR® in 2023.  Products that are recognized as the Most Efficient of ENERGY STAR® in 2023 prevent greenhouse gas emissions by meeting rigorousenergy efficiency performance levels set by the U.S. Environmental Protection Agency.

Product Limited Warranty
The compressor in your new system is covered by a 10 Year Unit Replacement Limited Warranty* on air conditioner and heat pump models, If the compressor fails in use at the original registered homeowner’s residence, a condenser will be provided at no charge. All remaining functional parts are covered by a 10-Year Parts Limited Warranty*. The For a full description of this warranty, please see your local Goodman dealer.

At Goodman, we believe in American dependability. Units are designed, engineered and assembled in the U.S.A.

Standard Features
• Variable-speed swing and scroll compressors
• High-density compressor sound blanket
• Integrated communicating ComfortBridge™ Technology
• Commissioning and diagnostics via indoor board Bluetooth with the CoolCloud™ phone and tablet application
• Variable-speed DC outdoor fan motor
• Control algorithmic logic
• In communicating mode, only two low voltage wires to outdoor unit required
• Diagnostic indicator lights, seven-segment LED display, and fault code storage
• Field-selectable boost mode increases compressor speed during unusually high loads
• Field-installed bi-flow filter drier
• Coil and ambient temperature sensors
• AHRI Certified; ETL Listed

Cabinet Features
• Heavy-gauge, galvanized-steel cabinet
• Removable grille-style top design compliant with UL 60335-2-40
• Venturi for increased velocity of airflow
• Baked-on powder-paint finish
• 500-hour salt-spray tested
• Wire fan discharge grille
• Steel louver coil guard
• Top and side maintenance access
• Sweat connection service valves with easy access to gauge ports
• Single-panel access to controls with space provided for field-installed accessories

Products specifications
Attribute nameAttribute value
Nominal Capacity2 ton
SEER2 Rating19.2 Nominal, Up to 22.5
Compressor StagingInverter, Swing Type
Dimensions35-1/2"W x 35-1/2"D x 38-1/4"H
Fuse Size20 A
Liquid Line Size3/8 Inch
Refrigerant TypeR-410A
Sound Level71 dBA
Suction Line Size3/4 Inch
