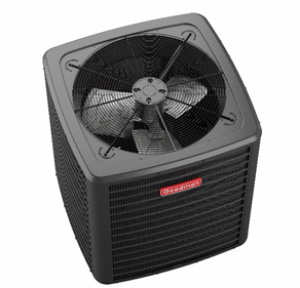

GSXC702410 Goodman 2 Ton, 17.2 SEER2 Air Conditioner

Goodman GSXC702410 2 Ton, 17.2 SEER2 Air Conditioner, Two Stage
SKU: GMN-GSXC702410
Manufacturer part number: GSXC702410
Manufacturer:

Goodman Manufacturing


Please Sign In to display product price.

Goodman GSXC702410 2 Ton, 17.2 SEER2 Air Conditioner, Two Stage Scroll Compressor, 1/3HP ECM Condenser Fan Motor, ⅜" Liq. ¾" Suct., 25A 208/230-1, 35-1/2"W x 35-1/2"D x 39-1/2"H, 214 lbs.

GSXC7

Split System Air Conditioner
Up to 17.2 SEER2 Performance
High efficiency 2-stage scroll compressor
Enhanced air flow

A system that works smarter.
Revolutionary ComfortBridge™ technology is factory-installed into select Goodman brand gas furnaces and air handlers to ensure that the entire system operates at peak, energy-efficient performance. Simply put, communications technology that is typically located in a thermostat was moved from the wall and securely placed into the HVAC equipment!

Quiet Performance

You can be assured that your Goodman brand air conditioner will provide you with quiet operation. To minimize operating sounds, we’ve acoustically engineered our systems with enhancements such as a specially designed sound-control top.

Copeland® CoreSense Diagnostics

Constantly monitoring the performance of your Goodman brand air conditioner, this advanced diagnostics system provides insight for accurate troubleshooting and quick diagnosis and repairs. Using the compressor as a sensor, CoreSense Diagnostics delivers active protection and will proactively shut the system down should it detect conditions that could damage the compressor. As a result, catastrophic failures and extensive, costly repairs are often avoided.

Energy Efficiency

Energy efficiency equates to cost savings. Your Goodman brand GSXC7 Air Conditioner offers up to 17.2 SEER2 energy-efficiency performance. Select models are rated Most Efficient of ENERGY STAR® in 2023.  Products that are recognized as the Most Efficient of ENERGY STAR® in 2023 prevent greenhouse gas emissions by meeting rigorousenergy efficiency performance levels set by the U.S. Environmental Protection Agency.

Product Limited Warranty
The compressor in your new system is covered by a 10 Year Unit Replacement Limited Warranty* on air conditioner and heat pump models, If the compressor fails in use at the original registered homeowner’s residence, a condenser will be provided at no charge. All remaining functional parts are covered by a 10-Year Parts Limited Warranty*. The For a full description of this warranty, please see your local Goodman dealer.

At Goodman, we believe in American dependability. Units are designed, engineered and assembled in the U.S.A.

Standard Features
• Two-Stage Copeland Ultra-Tech scroll compressor
• Quiet two-speed ECM outdoor fan motor
• Integrated communicating ComfortBridge™ Technology
• Commissioning and diagnostics via Bluetooth indoor board via CoolCloud™ App
• Copeland® ComfortAlert™ built in diagnostics
• Copper tube/enhanced aluminum fin coil - 5mm on 2.0-3.0T
• Color-coded terminal strip for non-communicating set-up
• Only two low-voltage wires required in communication mode
• Factory-installed filter drier
• Factory-installed transformer
• Factory-installed high and low-pressure switches
• High-density foam compressor sound blanket
• Fully charged for 15’ of tubing length
• Ambient temperature sensors
• Ground lug connection
• AHRI Certified - ETL Listed

Cabinet Features
• Removable grille-style top design compliant with UL 60335-2-40
• Venturi for increased velocity of airflow
• Heavy-gauge galvanized steel cabinet
• Baked-on powder-paint finish with 500-hour salt-spray approval
• Steel louver coil guard with rust-resistant screws.
• Top and side maintenance access
• Single-panel access to controls with space for field-installed accessories
• Service valves with sweat connections and easy-access gauge ports

• Heavy-gauge galvanized steel cabinet
• Baked-on powder-paint finish with 500-hour salt-spray approval
• Steel louver coil guard with Rust-resistant screws.
• Top and side maintenance access
• Single-panel access to controls with space for field-installed accessories
• Service valves with sweat connections and easy-access gauge ports

Products specifications
Attribute nameAttribute value
Nominal Capacity2 ton
SEER2 Rating17.2
Compressor StagingTwo Stage
Dimensions35-1/2"W x 35-1/2"D x 39-1/2"H
Fuse Size25 A
Liquid Line Size3/8 Inch
Refrigerant TypeR-410A
Sound Level71 dBA
Suction Line Size3/4 Inch
