Sorry - this product is no longer available

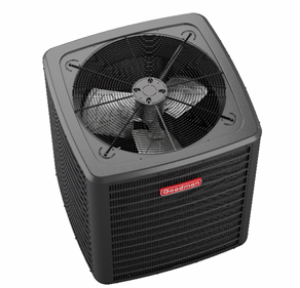

GSXB403610 Goodman 3 Ton, 14.3 SEER2 Air Conditioner

Goodman GSXB403610 3 Ton, 14.3 SEER2 Air Conditioner, Single Stage
SKU: GMN-GSXB403610
Manufacturer part number: GSXB403610
Manufacturer:

Goodman Manufacturing


Please Sign In to display product price.

Goodman GSXB403610 3 Ton, 14.3 SEER2 Air Conditioner, Single Stage Scroll Compressor, 1/6HP PSC Condenser Fan Motor, ⅜" Liq. ⅞" Suct., 30A 208/230-1, 35-1/2"W x 35-1/2"D x 39-1/2"H, 202 lbs.

GSXB4

Split Air Conditioner
Energy Efficient Base Plus
Up to 14.3 SEER2 Performance

Energy-efficient compressors are designed to efficiently deliver indoor comfort, possibly saving on monthly energy costs.

A single-speed permanent split capacitor (PSC) condenser fan motor is designed to provide consistent airflow for optimum system performance.

Copper coil tubing with enhanced aluminum fins increases the area for heat absorption, providing outstanding, energy-efficient heat transfer performance.

Product Limited Warranty
The compressor and functional parts in your Goodman brand GSXB4 Air conditioner system are covered by a 10-Year Parts Limited Warranty*. For a full description of this warranty, please see your local Goodman dealer or click on the consumer brochure

At Goodman, we believe in American dependability. Units are designed, engineered and assembled in the U.S.A.

Standard Features
• Energy-Efficient Compressor
• Factory-installed filter drier
• Fully charged for 15’ of tubing length
• Copper tube/ enhanced aluminum fin coil-5mm diameter on 1.5-3.0T
• Service valves with sweat connections and easy-to-access gauge ports
• Contactor with lug connection
• Ground lug connection
• AHRI Certified
• ETL Listed

Cabinet Features
• Removable grille-style top design compliant with UL 60335-2-40
• Heavy-gauge galvanized-steel cabinet
• Venturi for increased velocity of airflow
• Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
• Steel louver coil guard
• Rust-resistant coated screws
• Single-panel access to controls with space provided for field-installed accessories

Products specifications
Attribute nameAttribute value
Nominal Capacity3 ton
SEER2 Rating14.3
Compressor TypeScroll
Dimensions35-1/2"W x 35-1/2"D x 39-1/2"H
Fuse Size30 A
Liquid Line Size3/8 Inch
Refrigerant TypeR-410A
Sound Level75 dBA
Suction Line Size7/8 Inch
