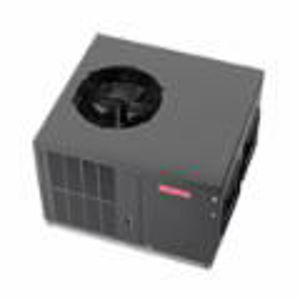

Goodman GPG1424060M41

Goodman GPG14M Gas/Electric Packaged Unit, 2 ton, 23000 BtuH Cooling, 60000 BtuH Input/48000 BtuH Output Heating, 11 EER
SKU: 82154
Manufacturer part number: GPG1424060M41
Manufacturer:

Goodman Manufacturing


Please Sign In to display product price.

Goodman GPG14M Gas/Electric Packaged Unit, 2 ton, 23000 BtuH Cooling, 60000 BtuH Input/48000 BtuH Output Heating, Downflow/Horizontal, Multi-Position, Operation Mode: Cooling and Heating, 11 EER, 14 SEER, 208/230 V, 60 Hz, 1 Phase, 20 A Fuse, 800 cfm, R-410A, Medium Chassis, 3.3 sq-ft Filter, 78 dB, 1/2 hp 1050 Rpm Energy Efficient Motor, Aluminum Tube/Aluminum Fin Coil, Galvanized Steel Cabinet, Gray, 34-3/4 Inch H x 47 Inch W x 51 Inch D

The Goodman brand GPG Series Gas Pack offers energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.

  • High-efficiency compressor with internal relief valve
  • Heavy-duty stainless-steel heat exchanger
  • All-Aluminum evaporator coil
  • Multi-speed ECM blower motor
  • Flowrater expansion device on 2- to 4-ton units, TXV expansion device on 5-ton units
  • Redundant gas valve with easy conversion to propane
  • Power-assisted combustion
  • Direct spark ignition system includes a microprocessor-based control for the entire ignition sequence, all blower operation, and all safety circuits complete with self-diagnostics
  • All models comply with California Low NOx standards
  • High-quality UV-resistant powder-paint finish
  • Convenient access panels
  • One roof curb fits all units, fully insulated cabinet
  • Variable speed
  • When properly anchored, meets 2010 Florida Building Code unit integrity requirements for hurricane type winds (anchor bracket kits available)
  • Heating capacity: 81 AFUE, 30 - 60 deg C temperature rise range, 3 burners, 45 mm natural/1.25 mm propane orifice size
  • Evaporator motor: 10 Inch depth x 8 Inch width wheel, 3.9 A, T4 motor speed tap (cooling)
  • Evaporator coil: 4.3 sq-ft face area, 3 rows deep, 14 fins per Inch, 0.057 Inch piston size, 3/4 Inch drain size (NPT), 75 oz refrigerant charge
  • Condenser fan/coil: 1/6 hp, 815 Rpm, 22 Inch diameter, 3 blades, 2150 outdoor nominal cfm, 12.3 sq-ft face area, 1 row deep, 24 fins per Inch
  • Compressor: Rotary type, single stage, 7.7 A (RLA), 37 A (LRA)
  • Electrical data: 3.9 A (FLA) indoor blower, 1.1 A (FLA) outdoor fan, 1.7 A (LRA) outdoor fan, 12.7 A total unit, 14.6 A minimum circuit ampacity, 1-1/8 Inch entrance size power supply, 7/8 Inch entrance size control voltage





Standard/Approvals: AHRI Certified, ETL Listed, ISO 9001:2008 Certified

Products specifications
Attribute nameAttribute value
SEER2 Rating14.3
ConfigurationDownflow/Horizontal, Multi-Position
Dimensions34-3/4 Inch H x 47 Inch W x 51 Inch D
Electrical Ratings208/230 V, 60 Hz, 1 Phase
Fuse Size20 A
Heating Capacity60000 BtuH
Nominal Capacity2 ton
Operation ModesCooling and Heating
Refrigerant TypeR-410A
Sound Level78 dBA
