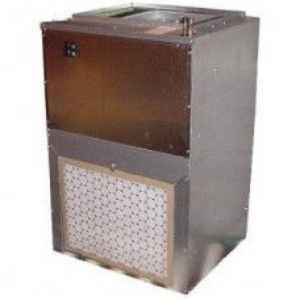

Goodman AWUF180816

Goodman® AWUF 1-Piece Unpainted Air Handler, 1.5 ton, 760 cfm, 18000 BtuH Cooling, 8 kW Electric Heat, 208/240 V, 1 Phase, 60 Hz
SKU: 8979
Manufacturer part number: AWUF180816
Manufacturer:

Goodman Manufacturing


Please Sign In to display product price.

Goodman® AWUF Air Handler, 1-Piece, Unpainted, 1.5 ton, 760 cfm, 18000 BtuH Cooling, 8 kW Electric Heat, Multi Position, 3/8 Inch Liquid Line, 5/8 Inch Suction Line, 208/240 V, 1 Phase, 60 Hz, Wall Mount, Steel, Galvanized, 16-1/8 Inch L x 20-3/16 Inch W x 36 Inch D, For Use With: R-410A and R-22 Refrigerants, Includes: Filter Rack and Wall Hanging Bracket

The Goodman® AWUF180816 is a wall mounted, multi-speed air handler with a check flowrater. It has a top-of-the-line, all aluminum evaporator coil. It comes with a wall hanging bracket, for a faster installation process. This Goodman® air conditioner comes from the AWUF line of wall mounted air handlers. It features a blower cooling capacity of 2 tons with a nominal cooling rating of 18,000 BtuH . It has rust-resistant nickel chromium heating elements that feature an electric heat capability of 8 kW. For effective cooling, this air handler uses a direct drive, multi-speed PSC motor that allows for air volume variation. This wall mounted air handler comes with many impressive features that make it a great choice for your home. This model features a small chassis with a front or bottom return. A built-in filter rack with included filter makes for healthier air quality plus, a thermoplastic drain pan with bottom primary and secondary drain connections creates better control over condensate and moisture created by this unit.

  • All aluminum tubing coils on all models
  • Direct drive, multi-speed motor allows air volume variation for heating cooling
  • Factory installed pull type disconnect
  • Equipped with a check flowrater for cooling only and heat pump operation
  • Thermoplastic drain pan with bottom primary and secondary drain connections
  • Built-in filter rack
  • Wall hanging bracket provided
  • Sequence-controlled, rust-resistant nickel chromium heating elements of 3, 5, 8 and 10 kW
  • 8 kW electric heat
  • 9 Inch dia x 6 Inch width blower
  • 3/4 coil drain connect FPT
  • 39.6 minimum circuit ampacity at 240 V ; 34.6 minimum circuit ampacity at 208 V
  • 40 maximum overcurrent device at 240 V, 35 maximum overcurrent device at 208 V
  • 197 VAC minimum voltage, 253 VAC maximum voltage
  • 1.3 A (FLA), 1/5 hp blower motor
  • PSC motor





Standard/Approvals: AHRI Certified, ETL Listed, ISO:9001 Certified

Application: Cooling and Heat Pump

Products specifications
Attribute nameAttribute value
ConfigurationMulti-Position
Cooling Capacity18000 BTU/h
Dimensions16-1/8 Inch L x 20-3/16 Inch W x 36 Inch D
Electrical Ratings208/240 V, 60 Hz, 1 Phase
FinishGalvanized
Flow Rate760 cfm
Heater Wattage8 kW
Liquid Line Size3/8 Inch
ManufacturerGoodman Manufacturing
MaterialSteel
Mounting TypeWall
Nominal Capacity15 ton
SeriesAWUF
Suction Line Size5/8 Inch
Suitable For Use WithR-410A and R-22 Refrigerants
Type1-Piece, Unpainted
