AMST36BU1400 Goodman Multi-Speed, ECM-Based, 3 ton, TXV

Goodman® AMST36BU1400 Multi-Position, Multi-Speed, ECM-Based, 3 ton, w/ internal TXV, 17 1/2" wide
SKU: GMN-AMST36BU1400
Manufacturer part number: AMST36BU1400
Manufacturer:

Goodman Manufacturing


Please Sign In to display product price.

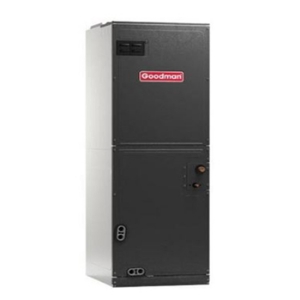

Goodman® Multi-Position, Multi-Speed, ECM-Based Air Handler with Internal TXV

Product Features
• Internal factory-installed thermal expansion valves for cooling and heat pump applications
• Direct drive, multi-speed ECM blower motor
• All-aluminum evaporator coil
• Coil mounting track for quick repositioning
• Optimized for use with R-410A refrigerant
• Cabinet air leakage less than 2.0% at 1.0 inch H₂O when tested in accordance with ASHRAE standard 193
• Cabinet air leakage less than 1.4% at 0.5 inch H₂O when tested in accordance with ASHRAE standard 193
• AHRI certified; ETL listed
• Rigid SmartFrame™ cabinet
• Horizontal or vertical configuration capabilities
• 21” depth for easier attic access
• DecaBDE-free thermoplastic drain pan with secondary drain connections
• Screw-less sides and back helps to reduce condensation when installed in humid locations
• Foil-faced insulation covers the internal casing to reduce cabinet condensation
• Galvanized, leather grain-embossed finish
• Glue-less cabinet insulation retention
• Tool-less filter access
• Field Installed 3 kW – 25 kW electric heater kits available

Products specifications
Attribute nameAttribute value
Voltage Rating208/230 V
Liquid Line Size3/8 Inch
Drain Connection3/4 Inch
Cooling Capacity36000 BtuH
ManufacturerGoodman Manufacturing
Suction Line Size3/4 Inch
