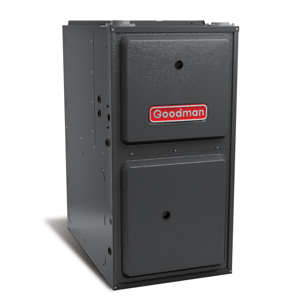

GM9S960603BN Goodman Furnace, 96% 60,000 UP/HORZ Single Stage, 9SPD ECM, 17.5"

Goodman 96% AFUE GM9S96 Gas Furnace 9 Speed ECM, Single Stage Convertible, Upflow/Horizontal, 60000 BTUH/H
SKU: GMN-GM9S960603BN
Manufacturer part number: GM9S960603BN
Manufacturer:

Goodman Manufacturing


Please Sign In to display product price.

Standard Features
• Heavy-duty aluminized-steel tubular heat exchanger
• Stainless-steel secondary heat exchanger
• Single-stage gas valve
• Durable Silicon Nitride igniter
• Quiet single-speed induced draft blower
• Self-diagnostic control board with constant memory fault code history output to a LED
• All models comply with California 40 ng/J Low NOx emissions standard
• Can no longer be installed in California’s South Coast Air Quality Management District (SCAQMD) on or after October 1, 2019.
• AHRI Certified; ETL Listed

Cabinet Features
• Designed for multi-position installation
GM9S96: upflow, horizontal left or right
GC9S96: downflow, horizontal left or right
• Certified for direct vent (2-pipe) or non-direct vent (1-pipe)
• Easy-to-install top venting with optional side venting  GM9S96/upflow models only
• Convenient left or right connection for gas and electrical service
• Cabinet air leakage (QLeak) ≤ 2%
• Heavy-gauge steel cabinet with durable finish
• Fully insulated heat exchanger and blower section
• Airtight solid bottom or side return with easy-cut tabs for effortless removal in bottom air-inlet applications

Products specifications
Attribute nameAttribute value
Depth29 Inch
Height34-1/2 Inch
Width17-1/2 Inch
Weight119 lbs
AFUE Rating96%
Heating Capacity60,000 Btu/Hr
Number of Burners3
