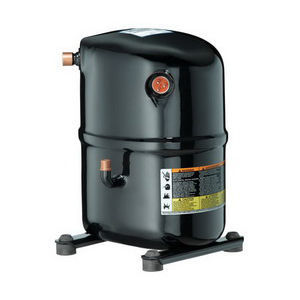

Copeland CR47KQE-TF5-970

Copeland® CR47KQE-TF5-970 Hermetic Compressor, 4 ton, 47200 BtuH Cooling, 4540 W, R-22, HCFC, 10.4 EER, 13.7 A
SKU: 75522
Manufacturer part number: CR47KQE-TF5-970
Manufacturer:

Copeland


Please Sign In to display product price.

Copeland® Hermetic Compressor, 4 ton, 47200 BtuH Cooling, 4540 W, R-22, HCFC, 10.4 EER, 200/230 V, 60 Hz, 3 Phase, 13.7 A, 7/8 Inch Stub Suction Line, 1/2 Inch Stub Discharge Line, POE Compressor Oil, 78 dBA, 7.5 Inch L x 7.5 Inch W x 15.19 Inch H Mount, 10.38 Inch L x 9.09 Inch W x 14.81 Inch H, Includes: Mounting Hardware

  • 3500 Rpm
  • Precharged with POE oil
  • Use internal line break overloads for motor protection
  • 65 deg F return gas temperature
  • 130 deg F condensing temperature
  • Terminal block connection





Standard/Approvals: UL SA-2337

Application: Air Conditioning



Products specifications
Attribute nameAttribute value
Amperage Rating13.7 A
Compressor OilPOE
Cooling Capacity47200 BtuH
Dimensions10.38 Inch L x 9.09 Inch W x 14.81 Inch H
Discharge Line Size1/2 Inch Stub
EER Rating10.4
ManufacturerEmerson Electric
Mounting Type7.5 Inch L x 7.5 Inch W x 15.19 Inch H
Nominal Capacity4 ton
Power Rating4540 W
Refrigerant TypeR-22, HCFC
Sound Level78 dBA
Suction Line Size7/8 Inch Stub
Voltage Rating200/230 V, 60 Hz, 3 Phase
