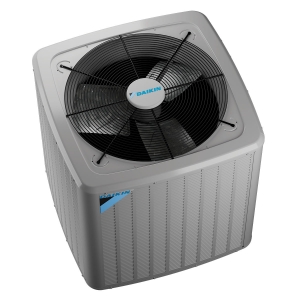

DX3SEA4830 Daikin 4 Ton, Light Commercial, 208/230V-3Ph, 13.4 SEER2 Air Conditioner

Daikin DX3SEA4830 4 Ton, Light Commercial, 208/230V-3Ph, 13.4 SEER2 Air Conditioner
Manufacturer part number: DX3SEA4830

Please Sign In to display product price.

Daikin DX3SEA4830 4 Ton, Light Commercial, 13.4 SEER2 Air Conditioner, Single Stage Scroll Compressor, 1/4HP PSC Condenser Fan Motor, ⅜" Liq. ⅞" Suct., 35A 208/230V-3Ph, 35-1/2"W x 35-1/2"D x 35-3/4"H, 231 lbs.

DX3SEA | DX13 | DX14XA
Commercial Air Conditioners

In every Daikin commercial air conditioner, our high performance, high-efficiency compressors operate in tandem with our high-efficiency coil design. This innovative system offers one of the best levels of reliability, durability and efficiency we offer in our commercial packaged air conditioners. The Daikin DX13, DX3SEA and DX14XA commercial air conditioners feature a powder-paint finish over heavy-gauge galvanized steel. This provides premium durability and improved UV protection. The attractive louvered metal guard protects the coil from damage and strengthens the unit. The base pan is elevated to provide excellent water drainage and helps keep the coil away from debris that can collect inside the unit.

Standard Features
• Energy-efficient compressor
• Factory-installed filter drier
• Copper tube/ enhanced aluminum fin coil
• Service valves with sweat connections and easy-access gauge ports
• Contactor with lug connection
• Ground lug connection
• Units meet the performance outlined in Table 6.8.1B of ASHRAE Standard 90.1-2010
• AHRI Certified
• ETL Listed
• Match systems have a minimum SEER2 rating of 13.4

Cabinet Features
• Innovative louvered sound control top design
• Steel louver coil guard
• Heavy-gauge galvanized-steel cabinet
• Attractive Nickel Gray powder-paint finish
• Top and side maintenance access
• Single-panel access to controls with space provided for field-installed accessories

The warranty on all parts lasts for a period of up to 5 YEARS after the installation date.

Products specifications
Attribute nameAttribute value
Voltage Rating208/230 V, 60 Hz, 3 Phase
Connection TypeSweat
Liquid Line Size3/8 Inch
Nominal Capacity4 ton
Refrigerant TypeR-410A
Sound Level74 dBA
TypeAir Conditioner
Fuse Size35 A
Dimensions35-1/2"W x 35-1/2"D x 35-3/4"H
SEER2 Rating13.4
Suction Line Size7/8 Inch
