Copeland Scroll Compressor, 3 ton, 33000 BtuH Cooling, 2-1/4 hp, R-410A, 19.6 EER, 208 - 230 V, 60 Hz, 1 Phase, 6.6 A, 3/4 Inch Stub Suction Line, 1/2 Inch Stub Discharge Line, POE Compressor Oil, 70 dBA, 7-1/2 Inch L x 7-1/2 Inch W x 16.02 Inch H Mount, 9.56 Inch L x 9.56 Inch W x 15.27 Inch H
Application: Air Conditioning

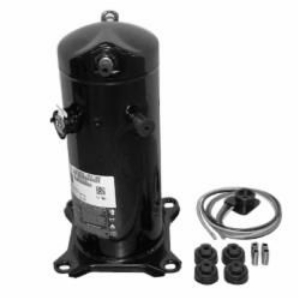

Copeland ZPS33LXE-PFV-800 Compressor – Technical Overview
The ZPS33LXE-PFV-800 is a modulating scroll compressor designed for high-temperature air conditioning applications using R-410A refrigerant. It belongs to Copeland’s LXE series, which consolidates service models for easier replacement and inventory management.
Key Specifications
Compressor Type: Scroll (Modulating)
Application: High Temperature AC
Refrigerant: R-410A
Cooling Capacity: 33,000 BTU/h @ 45°F evaporator temp
Voltage: 208–230V
Phase: Single-phase
Suction Connection: 3/4" ODF
Discharge Connection: 1/2" ODF
Run Capacitor: 014-0064-25
Height: 15.42" / 15.66"
Weight: 52 lbs
Connector Type: Molded Plug |
Country of Origin: Mexico
Features & Benefits
- Modulating Scroll Technology: Offers variable capacity for improved efficiency and comfort.
- LXE Platform Compatibility: Designed to replace older Copeland models (ZPKA/KV/K5/K6/K7), streamlining service and inventory.
- Robust Construction: Maintains Copeland’s reputation for reliability and performance.
- Field Service Ready: Ideal for retrofitting and servicing existing R-410A systems.
