ZP25LXE‑PFV Compressor, 25,500–33,800 BTU, 208/230V, 16.0A max, R‑410A, 51.0 lbs, 66–71 dBA, 3/4" suction, 1/2" discharge

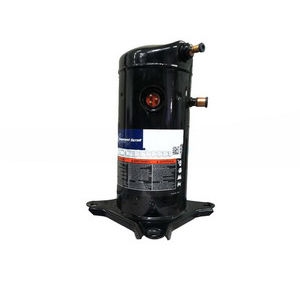

ZP25LXE‑PFV
Scroll Compressor, R‑410A, 208/230V, 1‑Phase, 60 Hz
Capacity: 25,500 BTU/hr at 45/130; 33,800 BTU/hr at 50/100
Power Input: 2,430 W at 45/130; 1,555 W at 50/100
EER: 10.50 at 45/130; 21.75 at 50/100
Mass Flow: 367 lbs/hr at 45/130; 418 lbs/hr at 50/100
Mechanical Displacement: 1.48 in³/rev
Overall Length: 9.00 in
Overall Width: 11.36 in
Overall Height: 15.28 in
Mounting Length: 7.50 in
Mounting Width: 7.50 in
Mounting Height: 16.00 in
Suction Connection: 3/4 in stub
Discharge Connection: 1/2 in stub
Net Weight: 51.0 lbs
Sound Power: 66 dBA avg, 71 dBA max
Vibration: 2.0 mils avg, 3.0 mils max
MCC: 19.5 A
Max Operating Current: 16.0 A
RLA (contactor): 13.9 A
RLA (breaker/wire): 12.5 A
LRA High: 67.8 A
RPM: 3500
Box IP: 21
UL File: SA2337‑20031217
Oil Type: 3MA
Oil Charge: 25 oz
Oil Recharge: 21 oz
Capacitor Options: 014‑0064‑07 (35.0 MFD, 370V); 014‑0061‑27 (88.0–106.0 MFD, 330V)
