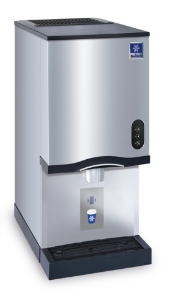

CNP0201A-161 Manitowoc Countertop Nugget Ice Machine & Dispenser, 285 lb daily production, 10lb storage, Touchless
CNP0201A Countertop Nugget Ice Maker and Dispenser – R290
High-capacity nugget ice machine with 10 lbs storage, ideal for nursing homes and breakrooms. Produces soft, chewable ice that cools efficiently for dispensing and blended drinks. Eco-friendly R290 refrigerant ensures powerful performance with a lower environmental impact.
Design & Durability
DuraTech™ front panel resists hardwater stains and is easy to clean
Blue LED light provides dispensing visibility in low-light environments
Water and drain connections located at the back or bottom for flush mounting
Functionality & Innovation
Dispensing activated by touchless sensor
Simply place cup under chute to dispense ice
Built-in technology manages sanitation from start to finish
Performance & Placement
Produces up to 285 lbs. (129 kgs) of ice daily
Larger drain pan helps reduce ice spillage
Uses R290 refrigerant — environmentally responsible and energy efficient
Sanitation & Maintenance
Integrated sanitation system automates cleaning from start to finish
DuraTech™ panel simplifies cleaning and maintains a polished appearance
Commercial Warranty
3-year ice maker parts and labor
5-year evaporator parts and labor
Compressor parts for 5 years and labor for 3 years
ICE SHAPES SIZE
Nugget: Consists of small pieces ranging from 3/8” to 1/2” in width and length on average. Offers a 85% ice to water ratio with a softer, chewable texture while still providing maximum cooling effect and great dispensability
Up to 285 kgs (129 lbs) of daily ice production
Dimensions
– CNP0201: 16.25"(41.3 cm) wide, 24" (61 cm) deep, 35" (89 cm) high
Ice storage capacity*
– CNP0201: 10 lbs (4.54 kgs)
SPECIFICATIONS
Refrigerant: R290
BTU Per Hour
2,300 (average)
Compressor: Nominal rating 0.375 HP
Operating Limits:
Ambient temperature range: 45˚ — 110˚F (7.2˚ to 43.3˚C)
Water temperature range: 45˚ — 90˚F (7.2˚ to 32˚C)
Water pressure (inlet) ice maker: 20 — 80 psi (137.9 to 551.1 kPA)
Power:
115/60/1 ice machines are factory pre-wired with a 180 cm (6 ft) power cord and NEMA 5‑15P-plug configuration
Air cooled:
– 115V/60 Hz - 7.8 amps
Maximum Fuse Size
– 15 amps
– HACR-type circuit breakers can be used in place of fuses
ACCESSORIES
K00453: CNP Stand 22.3" W x 29.2" H x 36" D • 100 lbs (56.4 W x 74.2 H x 76.2 D cm • 50 kgs)
K00514: CNP0201-N Solid Front Panel for CNP0201 makes the unit completely touch-free.
CNP0201A
W x D x H: 16-1/4" x 24" x 35", 41.3cm x 61cm x 88.9cm
Weight: 260.1 lb, 118 kg
Power Input Type: Electric
Height without legs.
10 cm (4”) legs sold separately: K-00345.
