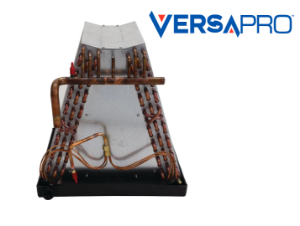

Aspen CM36A3Z-177L-023 Uncased Evaporator Coil, Downflow, 17.75 Inch Wide, 1.5-3 ton, R-454B Piston, 17.5 Inch Tall, For Use with Manufactured Home Furnaces, Left Hand Connections, 3/8" Liq. 3/4" Suct., 36 lbs.
Coil Includes Aspen A2L Sensor Kit, Ships with R-454B Piston, Convertible to R-32, Schrader Valve on the Suction Line; Tailpiece Screen
CM Series Uncased Upflow/Downflow Copper Coils For use with Manufactured Home Furnaces
Features and Benefits
APPLICATION VERSATILITY
• Downflow plates and manufactured housing drain hose and drain elbow included.
• AHRI certifiable with all brands of A/C and heat pump systems.
• ETL listed for R454B and R32 with Refrigerant Detection System (RDS).
• A2L refrigerants require a Refrigerant Detection System (RDS) for compliance.
— Dual Safety Listed for R32 and R454B. Compliant with UL 60335-2-40.
— Dual A2L Refrigerant System coils and air handlers are configured to either R32 or R454B in the field with approved Metering Device. Dual A2L Refrigerant Systems MAY NOT be installed with R410A systems per UL 60335-2-40.
— In accordance with UL 60335-2-40, Aspen Dual Refrigerant models are approved for sale as Dual A2L Refrigerant Systems and may be field-configured for use with either R32 or R454B using an approved metering device.
— Dual Refrigerant evaporator coils are not approved for use with R410A systems and must not be installed in R410A applications.
UL 60335-2-40 explicitly prohibits evaporator coils from being sold, rated, or installed for use with both A1 (R410A) and A2L (R32 and R454B) refrigerants.
FEATURES
• Rifled copper tubing, enhanced aluminum fins.
• Heavy duty polypropylene drain pans.
REFRIGERANT & PLUMBING CONNECTIONS:
• Immersion tested at 500 psi, followed by nitrogen pressurization and factory sealing to ensure optimal system integrity and long-term reliability.
• Schrader provided for pressure assurance testing.
• Left-hand refrigerant/plumbing connections, with downturn suction line for easy installation in manufactured housing applications. Refrigerant and plumbing connections:
— Condensate Drains: 3/4″ NPT
— Liquid line: 3/8” ODS
— Suction line
• 3/4” ODS on 1-1/2-ton to 3-ton
• 7/8” on 3-1/2-ton to 5-ton
• Drain connection:
— 177L pans have one (1) LH 3/4” FPT
— 195L pans have four (4) drains 3/4” FPT
WARRANTY
• Ten-year limited warranty with registration.
NOTES
(1) Do not use plastic drain pans on oil furnaces or other applications where outlet temperature may exceed 290ºF +/- 5ºF. Metal drain pans are recommended for this type of application.
