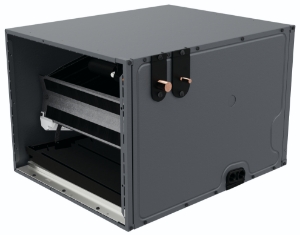

CHPTA1822A4 Evaporator Coil, 1.5 tons, Horizontal

CHPTA1822A4 Evaporator Coil, 1.5 tons, Horizontal,, R-410A TXV, 22" Wide 14" Tall
Manufacturer part number: CHPTA1822A4

Goodman Manufacturing

Please Sign In to display product price.

CHPTA1822A4 Evaporator Coil, 1.5 tons, Horizontal,, R-410A TXV, 22" Wide 14" Tall, 3/8" Liq. 3/4" Suct., 48 lbs

CHPTA coils

Cased, Painted Horizontal Evaporator Coil w/ Thermal Expansion Valve

Standard Features
• All-Aluminum evaporator coil
• 7mm aluminum tubing
• Designed for horizontal applications
• Optimized for use with R-410A refrigerant
• CHPTA models feature factory-installed thermal expansion valves for cooling and heat pump applications
• 21" depth for easier attic access
• CHPTA models include a single front access panel
• Foil-faced insulation covers the internal casing to reduce cabinet condensation
• Galvanized, leather grain-embossed finish
• Rust resistant, thermoplastic drain pans featuring a low water-retention design
• DecaBDE-free thermoplastic drain pan with secondary drain connections
• UV-resistant drain pan
• AHRI certified; ETL listed

Products specifications
Attribute nameAttribute value
Coil ConfigurationCased Horizontal
Expansion Device - Refrigerant ControlThermal Expansion Valve - TXV
Tubing/Fin ConstructionRifled aluminum tubing, enhanced aluminum fins
Height14 Inch
Liquid Line Size3/8 Inch
Nominal Capacity1.5 ton
Refrigerant TypeR-410A
Suction Line Size3/4 Inch
Width22 Inch
