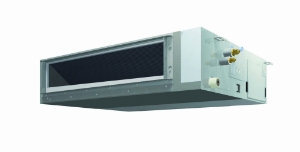

Daikin CDMA07AVJU9 0.58 ton Concealed Ducted Air Handler
Daikin AURORA – CDMA Ducted Concealed
Redesigned to withstand extreme weather conditions, the Daikin Aurora-CDMA Ducted Concealed unit makes a difference in any room offering concealed comfort and flexibility.
Features
- Energy Efficient – Up to 18.3 SEER2|Up to 9.2 HSPF2| Up to 11.8 EER2
- Up to 100% Cooling Capacity at 104˚F (40˚C) and efficient operation as high as 115˚F (46˚C) ambient temperature
- Up to 100% Heating Capacity at 5˚F (-15˚C) and efficient operation as low as -13˚F (-25˚C) ambient temperature
- Cooling Range 50˚ - 115˚F (10˚ - 46˚C) (Extended operation to -4˚ - 115˚F (-20˚ - 46˚C) with facility setting and air adjustment grille)
- Heating Range -13˚ - 65˚F (-25˚ - 18˚C)
- Capable of providing external static pressures up to .6 in. WG (150 Pa) on all models
- Redesigned PCB in the outdoor unit to withstand extreme conditions
- Indoor Sound Pressure as low as 32 dB(A)
- Outdoor Sound Pressure as Low as 50 dB(A)
- Program Dry Function
- Auto Changeover
- Auto-Fan Speed control (with wired controller)
- Self-Diagnostics with digital display
- Drain Pan Inspection Port
- Integral Lift Mechanism
- Auto Restart After Power Failure
- Anti-Corrosion Heat Exchanger Treatment
- Quick Warming Function
- Hot Start Function
- Automatic Defrosting
- Compatible with DKN Cloud Wi-Fi Adaptor
- No optional adapter needed for DIII - connection
- Link your unit into the wider building management system
- Compatible with the Daikin Zoning Kit (DZK)
Tech Specs
- Up to 18.3 SEER2
- Up to 11.8 EER2
- Up to 9.2 HSPF2
- Swing Inverter Compressor
- Inverter Technology
- R-32 Refrigerant Type
- Installation Type: Ducted concealed
Features and Benefits
- 0.6” static capable
- Available in 7K, 9K, 12K, 15K, 18K, and 24K sizes
- Auto fan speed
- Quick warming function
- Quite operation
- Concealed ducted system for multiple applications
CDMA requires a BRC1NRV71 controller
- Wired remote controller BRC1NRV71
- Centralized Management controller DCS302C71
- Schedule timer controller DST301BA61
- Remote sensor KRCS01-6B
- Wiring Adaptor KRP1C76
Limited Warranty
12 Year Parts Limited Warranty, online registration must be completed within 60 days of installation.
