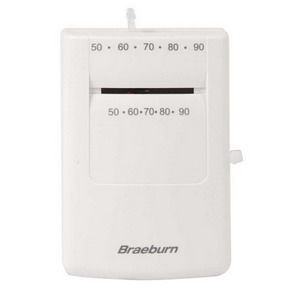

Braeburn 505

BraeburnĀ® Builder Non-Programmable Thermostat, 45 - 90 deg F, System Switching Heat-Off, 1-Stage, 24 VAC, Hardwired
SKU: 44690
Manufacturer part number: 505
Manufacturer:

Braeburn Systems


Please Sign In to display product price.
BraeburnĀ® Builder Non-Programmable Thermostat, 45 - 90 deg F, Terminal Designations: Rh, W, System Switching: Heat-Off, 1 Stage, 24 VAC, 0.15 - 1.2 A, Hardwired, Vertical Mount, 4.6 Inch L x 3.13 Inch W x 1.25 Inch H
  • Dependable switch performance
  • Environmentally safe- mercury free
  • Integrated subbase and front mounted wiring terminals make installation easy
  • Plated terminals prevent corrosion
  • No leveling required during installation
  • Heavy duty heat anticipator

Application: Gas, Electric, Oil and Millivolt Systems


Products specifications
Attribute nameAttribute value
Control Range45 - 90 deg F
Dimensions4.6 Inch L x 3.13 Inch W x 1.25 Inch H
Full Load Current0.15 - 1.2 A
ManufacturerBraeburn Systems
Mounting TypeVertical
Number of Stages1
Power SourceHardwired
SeriesBuilder
System SwitchingHeat-Off
Terminal DesignationsRh, W
Voltage Rating24 VAC
