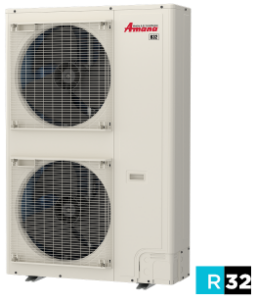

Amana AZV9SA6010 5 Ton, Up to 18.0 SEER2, Up to 9.0 HSPF2, Heat Pump, R32, Swing Inverter Compressor, 2 X 0.32HP ECM Condenser Fan Motor, ⅜" Liq. 1-1/8" Suct., 45A 208-230/1, 37"W x 12-5/8"D x 56-5/16"H, 71 dBA, 265 lbs.
AZV9S
Heat Pumps
AZV9S S-Series
S-Series High-Efficiency All Climate Heat Pump
Inverter Driven
Up to 21 SEER2, 10 HSPF2
Quiet DC outdoor fan motor
Standard Features
Energy Efficiency
SEER2 or Seasonal Energy Efficiency Rating is a measure designated by the U.S. Department of Energy and gives you a good idea of the performance you can expect from heat pumps. When you choose an energy efficient Amana brand heat pump, year-round indoor comfort is combined with year-round savings compared to lower SEER2-rated heat pumps.
Copeland ComfortAlert™ Diagnostics Module
Engineered into all premium Amana brand units, ComfortAlert enables the performance of your heat pump to be remotely monitored by your HVAC contractor.
Proactively detecting operation deficiencies and potential systems issues not only helps
ensure uninterrupted comfort; it prevents minor service requirements from becoming major repairs.
Quiet Performance
You can be assured that your Amana brand heat pump will provide you with quiet operation.
To minimize operating sounds, we’ve acoustically engineered our systems with enhancements such as a specially designed sound-control top.
Standard Features
• Variable-speed swing compressors
• Strong heating capacity (Met the requirements of the U.S. Department of Energy (DOE) Residential Cold Climate Heat Pump Challenge)
• Suitable for high-ambient regions
• Quiet digitally commutated fan motor
• High-density compressor sound blanket
• Compatible with Amana Smart Thermostat and other Amana communicating equipment
• Compatible with AHRI 1380 Demand Response functionality Proprietary control algorithmic logic
• In communicating mode, only two low voltage wires to outdoor unit required
• Diagnostic indicator lights, seven-segment LED display, and fault code storage
• Proprietary Inside intelligence for diagnostics
• Quiet-mode - provides enhanced acoustical comfort, up to 3 different sound levels (as low as 47dBA)
• Field-selectable boost mode increases compressor speed during unusually high loads
• Field-installed bi-flow filter drier
• Coil and ambient temperature sensors
• Suction pressure transducer
• Sweat connection service valves with easy access to gauge ports
• 3-Stage Heater Kit Available as a Field Installed Option for air handlers
• Built-in drain pan heater
• AHRI Certified; ETL Listed
Cabinet Features
• Heavy-gauge galvanized steel cabinet with grille style sound control side design
• Custom Ivory white powder-paint finish
• High corrosion (ZAM®), unpainted steel bottom frame and legs
• 500-hour salt-spray tested
• Wire fan discharge grille
• Top and side maintenance access
Product Limited Warranty
The compressor in your Amana brand AZV9S S-Series Heat Pump system is covered by a Lifetime Unit Replacement Limited Warranty* on selected heat pump models, good for as long as the purchaser owns his/her home. If the compressor fails in use at the original registered homeowner’s residence, a new condenser will be provided at no charge. All remaining functional parts are covered by a 10-Year Parts Limited Warranty*. For a full description of all warranties applicable to this product, please download the warranty information.
The owner of this heat pump system will appreciate the year-round energy savings and money-saving comfort that this product delivers year after year. Further, the unit features an attractive louvered metal coil guard that protects the coil from damage plus a powder-paint finish that provides premium durability and improved UV protection.
