Sorry - this product is no longer available

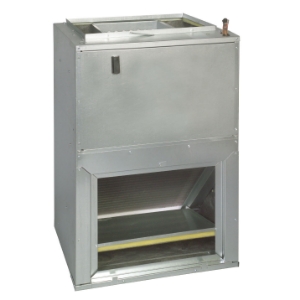

AWST36LU1405 Goodman Wall Mount Air Handler, Multi-Speed ECM, 3 ton, TXV, 5 kW Elec Heat

Goodman® AWST 1-Piece Unpainted Air Handler, 3 ton, 36000 BtuH Cooling, 208/230 V, 5 kW, 1 Phase, 60 Hz
SKU: GMN-AWST36LU1405
Manufacturer part number: AWST36LU1405
Manufacturer:

Goodman Manufacturing


Please Sign In to display product price.

Goodman® AWST Air Handler, 1-Piece, Unpainted, 3 ton, 760 cfm, 36000 BtuH Cooling, Multi Position, 3/8 Inch Liquid Line, 5/8 Inch Suction Line, 208/230 V, 5 kW, 1 Phase, 60 Hz, Wall Mount, Steel, Galvanized, 16-1/8 Inch L x 20-3/16 Inch W x 36 Inch D, For Use With: R-410A, Includes: Filter Rack

The Goodman®AWST36LU1405 is a wall mounted, multi-speed air handler with a TXV. It has a top-of-the-line, all aluminum evaporator coil. It comes with a wall hanging bracket, for a faster installation process. This Goodman® air conditioner comes from the AWST line of wall mounted air handlers. It features a blower cooling capacity of 3 tons with a nominal cooling rating of 36,000 BtuH . It has rust-resistant nickel chromium heating elements that feature an electric heat capability of 5 kW. For effective cooling, this air handler uses a direct drive, multi-speed ECM motor that allows for air volume variation. This wall mounted air handler comes with many impressive features that make it a great choice for your home. This model features a small chassis with a front or bottom return. A built-in filter rack with included filter makes for healthier air quality plus, a thermoplastic drain pan with bottom primary and secondary drain connections creates better control over condensate and moisture created by this unit.

  • All aluminum tubing coils on all models
  • AWST Models: Equipped with a fully adjustable TXV
  • Factory installed pull type disconnect
  • Thermoplastic drain pan with bottom primary and secondary drain connections
  • Built-in filter rack
  • Wall hanging bracket provided
  • Sequence-controlled, rust-resistant nickel chromium heating elements
  • 5 kW electric heat
  • 10 Inch dia x 6 Inch width blower
  • 3/4 coil drain connect FPT
  • 26 minimum circuit ampacity at 208 V; 29.8 minimum circuit ampacity at 230 V
  • 30 maximum overcurrent device at 208 V, 30 maximum overcurrent device at 230 V

Standard/Approvals: AHRI Certified, ETL Listed, ISO:9001 Certified

Application: Cooling and Heat Pump



Products specifications
Attribute nameAttribute value
Cooling Capacity36000 BtuH
FinishGalvanized
Heater Wattage5.0 kW
Mounting TypeWall
Nominal Capacity3 ton
SeriesAWST
Suitable For Use WithR-410A
Type1-Piece, Unpainted
