Goodman® AWSF Air Handler, 1-Piece, Unpainted, 2 ton, 760 cfm, 24000 BtuH Cooling, Multi Position, 3/8 Inch Liquid Line, 5/8 Inch Suction Line, 208/240 V, 8 kW, 1 Phase, 60 Hz, Wall Mount, Steel, Galvanized, 16-1/8 Inch L x 20-3/16 Inch W x 36 Inch D, For Use With: R-410A and R-22 Refrigerants, Includes: Filter Rack

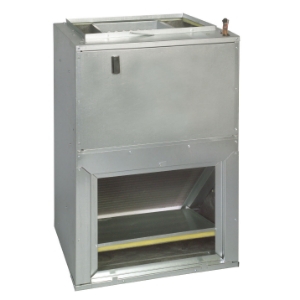

The Goodman® AWSF24SU1608 is a wall mounted, multi-speed air handler with a check flowrater. It has a top-of-the-line, all aluminum evaporator coil. It comes with a wall hanging bracket, for a faster installation process. This Goodman® air conditioner comes from the AWSF line of wall mounted air handlers. It features a blower cooling capacity of 2 tons with a nominal cooling rating of 24,000 BtuH . It has rust-resistant nickel chromium heating elements that feature an electric heat capability of 8 kW. For effective cooling, this air handler uses a direct drive, multi-speed ECM motor that allows for air volume variation. This wall mounted air handler comes with many impressive features that make it a great choice for your home. This model features a small chassis with a front or bottom return. A built-in filter rack with included filter makes for healthier air quality plus, a thermoplastic drain pan with bottom primary and secondary drain connections creates better control over condensate and moisture created by this unit.
- All aluminum tubing coils on all models
- Direct drive, multi-speed ECM motor allows air volume variation for heating cooling
- Factory installed pull type disconnect
- Equipped with a check flowrater for cooling only and heat pump operation
- Thermoplastic drain pan with bottom primary and secondary drain connections
- Built-in filter rack
- Wall hanging bracket provided
- Sequence-controlled, rust-resistant nickel chromium heating elements
- 8 kW electric heat
- 10 Inch dia x 6 Inch width blower
- 3/4 coil drain connect FPT
- 41.3 minimum circuit ampacity at 240 V; 36 minimum circuit ampacity at 208 V
- 45 maximum overcurrent device at 240 V, 40 maximum overcurrent device at 208
Standard/Approvals: AHRI Certified, ETL Listed, ISO:9001 Certified
Application: Cooling and Heat Pump
