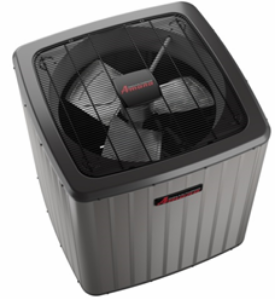

Amana ASZV903610 3 Ton, Up to 20 SEER2, 8.2 HSPF2 Heat Pump, 34200 Max Cooling BtuH, 34200 Max Heating BtuH, Inverter Swing Compressor, 1/2HP ECM Condenser Fan Motor, ⅜" Liq. ⅞" Suct., 30A 208/230-1, 35-1/2"W x 35-1/2"D x 41-1/4"H, 72 dBA, 291 lbs.
ASZV9 - Heat Pumps
High-Efficiency Split System Heat Pump
Up to 22.5 SEER2
Quiet DC outdoor fan motor
SEER or Seasonal Energy Efficiency Rating is a measure designated by the U.S. Department of Energy and gives you a good idea of the performance you can expect from heat pumps. When you choose an energy efficient Amana brand heat pump, year-round indoor comfort is combined with year-round savings compared to lower SEER-rated heat pumps. Rated Most Efficient of ENERGY STAR® in 2023. Products that are recognized as the Most Efficient of ENERGY STAR® in 2023 prevent greenhouse gas emissions by meeting rigorousenergy efficiency performance levels set by the U.S. Environmental Protection Agency.
Copeland ComfortAlert™ Diagnostics Module
Engineered into all premium Amana brand units, ComfortAlert enables the performance of your heat pump to be remotely monitored by your HVAC contractor.
Proactively detecting operation deficiencies and potential systems issues not only helps
ensure uninterrupted comfort; it prevents minor service requirements from becoming major repairs.
You can be assured that your Amana brand heat pump will provide you with quiet operation.
To minimize operating sounds, we’ve acoustically engineered our systems with enhancements such as a specially designed sound-control top.
Product Limited Warranty
The compressor in your new system is covered by a Lifetime Unit Replacement Limited Warranty* on air conditioner and heat pump models, If the compressor fails in use at the original registered homeowner’s residence, a condenser will be provided at no charge. The functional parts in your Amana brand ASZV9 Heat Pump system are covered by a 10-Year Parts Limited Warranty*. For a full description of this warranty, please see your local Amana dealer or click on the consumer brochure.
The owner of this heat pump system will appreciate the year-round energy savings and money-saving comfort that this product delivers year after year. Further, the unit features an attractive louvered metal coil guard that protects the coil from damage plus a powder-paint finish that provides premium durability and improved UV protection.
• Variable-speed swing compressors
• High-density compressor sound blanket
• Integrated communicating ComfortBridge™ Technology
• Commissioning and diagnostics via indoor board Bluetooth with the CoolCloud™ phone and tablet application
• Amana control algorithmic logic
• In communicating mode, only two low voltage wires to outdoor unit required
• Diagnostic indicator lights, seven-segment LED display, and fault code storage
• Field-selectable boost mode increases compressor speed during unusually high loads
• Quiet DC outdoor fan motor
• Fully charged for 15’ of tubing length
• Field-installed bi-flow filter drier
• Coil and ambient temperature sensors
• Suction pressure transducer (in cooling mode)
• Sweat connection service valves with easy access to gauge ports
• AHRI Certified; ETL Listed
• Heavy-gauge galvanized-steel cabinet
• Removable grille-style top design compliant with UL 60335-2-40
• Venturi for increased velocity of airflow
• Custom two-tone gray powder-paint finish
• 500-hour salt-spray tested
• Wire fan discharge grille
• Steel louver coil guard
• Top and side maintenance access
• Single-panel access to controls with space provided for field-installed accessories
