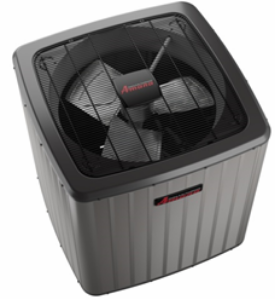

ASZH502410 Amana 2 Ton, 15.2 SEER2, 7.8 HSPF2 Heat Pump

Amana ASZH502410 2 Ton, 15.2 SEER2, 7.8 HSPF2 Heat Pump, Single Stage
Manufacturer part number: ASZH502410


Please Sign In to display product price.

Amana ASZH502410 2 Ton, 15.2 SEER2, 7.8 HSPF2 Heat Pump, Single Stage Scroll Compressor, 1/6HP PSC Condenser Fan Motor, ⅜" Liq. ¾" Suct., 25A 208/230-1, 35-1/2"W x 35-1/2"D x 35-3/4"H, 71 dBA, 193 lbs.

ASZH5 - Heat Pumps
High-Efficiency Heat Pump, Up to 15.2 SEER2 & 7.8 HSPF2


Energy Efficiency
SEER or Seasonal Energy Efficiency Rating is a measure designated by the U.S. Department of Energy and gives you a good idea of the performance you can expect from heat pumps. At a 15.2-SEER2 cooling rating, the Amana® brand ASZH5 Heat Pump can deliver an up to 7.8 HSPF2 (Heating Seasonal Performance Factor).

Copper tube / enhanced aluminum fin coil
Copper tube/enhanced aluminum fin coil-5mm diameter on 1.5-3.5T

Quiet Performance
You can be assured that your Amana brand heat pump will provide you with quiet operation. To minimize operating sounds, we’ve acoustically engineered our systems with enhancements such as a specially designed sound-control top.

Product Limited Warranty
The compressor in your new heat pump system is covered by a Lifetime Unit Replacement Limited Warranty* on selected gas furnace, air conditioner and heat pump models, good for as long as the purchaser owns his/her home. If the compressor or heat exchanger fails in use at the original registered homeowner’s residence, a new furnace or condenser will be provided at no charge. All remaining functional parts are covered by a 10-Year Parts Limited Warranty*.

Standard Features
• High-Efficiency Copeland® scroll compressor
• Advanced Copeland® CoreSense technology
• Copper tube/enhanced aluminum fin coil-5mm diameter on 1.5-3.5T
• SmartShift® technology to ensure quiet reliable defrost
• Factory-installed bi-flow liquid-line filter drier
• Factory-installed suction-line accumulator
• Factory-installed compressor crankcase heater
• Factory-installed high-capacity muffler
• High and low-pressure switches
• Service valves with sweat connections and easy access to gauge ports
• Copper tube / enhanced aluminum fin coil
• AHRI Certified; ETL Listed

Cabinet Features
• Removable grille-style top design compliant with UL 60335-2-40
• Heavy-gauge galvanized-steel cabinet
• Baked-on powder-paint finish with 500-hour salt-spray approval
• Steel louver coil guard with rust-resistant screws
• Top and side maintenance access
• Single-panel access to controls with space provided for field-installed for field-installed accessories

Products specifications
Attribute nameAttribute value
Nominal Capacity2 ton
SEER2 Rating15.2
HSPF2 Rating7.8
Compressor StagingSingle Stage
Dimensions35-1/2 Inch L x 35-1/2 Inch W x 35-3/4 Inch H
Fuse Size25 A
Liquid Line Size3/8 Inch
Refrigerant TypeR-410A
Sound Level71 dBA
Suction Line Size3/4 Inch
