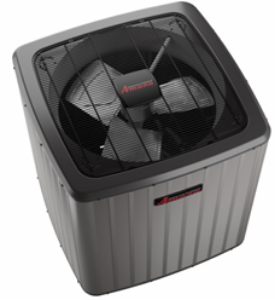

Amana ASZC704810 4 Ton, 17.2 SEER2, 8.2 HSPF2 Heat Pump, Two Stage Scroll Compressor, 1/3HP ECM Condenser Fan Motor, ⅜" Liq. ⅞" Suct., 45A 208/230-1, 35-1/2"W x 35-1/2"D x 41-5/8"H, 77 dBA, 307 lbs.
ASZC7 - Heat Pumps
High-Efficiency Heat Pump Two-Stage, Up to 17.2 SEER2 and 8.2 HSPF2
ComfortBridge™ Technology
Two-Stage scroll compressors
Features
ComfortBridge™ Technology
ComfortBridge™ Technology ‘bridges’ indoor comfort with smart technology, and is factory-installed into select, premium Amana® brand gas furnaces and air handlers. ComfortBridge™ Technology helps your Amana® brand air conditioner heating and cooling systems cost-effectively operate at peak performance.
In the past, communicating technology was limited to a few expensive, proprietary thermostats. Now, ComfortBridge™ Technology technology is installed securely in Amana® brand furnace and air handler equipment, providing you consistent, energy-efficient home comfort.
Quiet Performance
You can be assured that your Amana® brand heat pump will provide you with quiet operation. To minimize operating sounds, we’ve acoustically engineered our systems with enhancements that include a compressor sound-reduction cover made of high-density foam and a specially designed sound-control top.
Energy Efficiency
Energy efficiency equates to cost savings. Your Amana brand ASZC7 Heat Pump offers up to 17.2 SEER2 energy-efficiency performance. “SEER” stands for Seasonal Energy Efficiency Ratio, a measure used by the U.S. Department of Energy to rate the cooling efficiency of heat pumps. The higher the SEER, the greater the efficiency—and the lower the operating cost. Select modeals are rated Most Efficient of ENERGY STAR® in 2023. Products that are recognized as the Most Efficient of ENERGY STAR® in 2023 prevent greenhouse gas emissions by meeting rigorousenergy efficiency performance levels set by the U.S. Environmental Protection Agency.
Year-round exceptional heating and cooling energy efficiency, improved temperature and humidity control, make this unit to be what we believe is one of our best heat pumps available.
Product Limited Warranty
The compressor in your new heat pump system is covered by a Lifetime Unit Replacement Limited Warranty* on selected gas furnace, air conditioner and heat pump models, good for as long as the purchaser owns his/her home. If the compressor or heat exchanger fails in use at the original registered homeowner’s residence, a new furnace or condenser will be provided at no charge. All remaining functional parts are covered by a 10-Year Parts Limited Warranty*. For a full description of all warranties applicable to this product, please see your local Amana brand dealer.
Standard Features
• Two-Stage Copeland® UltraTech scroll compressor
• High-density foam compressor sound blanket
• Integrated communicating ComfortBridge™ technology
• Commissioning and diagnostics via indoor board Bluetooth with the CoolCloud™ phone and tablet application
• ComfortAlert™ built in diagnostics
• Copper tube/enhanced aluminum fin coil - 5mm on 2.0-3.0T
• Efficient, two-speed ECM condenser fan motor
• Simple low-voltage wiring to outdoor unit in communicating mode
• Diagnostic indicator lights and storage of six fault codes
• Color-coded terminal strip for non-communicating set-up
• High- and low-pressure switches
• Time-delay technology with short-cycle protection to ensure quiet, reliable defrost
• Factory-installed bi-flow liquid-line filter drier
• Factory-installed suction-line accumulator
• Factory-installed compressor crankcase heater
• Factory-installed high-capacity muffler
• Factory-installed coil and ambient temperature sensors
• AHRI Certified; ETL Listed
Cabinet Features
• Grille-style sound control top design
• Custom Nickel Gray powder-paint finish
• 500-hour salt-spray tested
• Wire fan discharge grille
• Steel louver coil guard
• Single panel access to controls with space provided for field-installed accessories
• Sweat connection service valves with easy access to gauge ports
