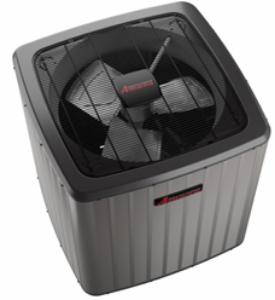

Amana ASXV902410 2 Ton, Up to 22.5 SEER2 Air Conditioner, 22600 Max Cooling BtuH, Inverter Swing Compressor, 1/2HP ECM Condenser Fan Motor, ⅜" Liq. ¾" Suct., 20A 208/230-1, 35-1/2"W x 35-1/2"D x 38-1/4"H, 210 lbs.
ASXV9 - Air Conditioners
High-Efficiency Split System Air Conditioner
Variable-Speed, Inverter Driven Up TO 22.5 SEER2
ComfortBridge™ Technology ‘bridges’ indoor comfort with smart technology, and is factory-installed into select, premium Amana® brand gas furnaces and air handlers. ComfortBridge™ Technology helps your Amana® brand air conditioner heating and cooling systems cost-effectively operate at peak performance.
In the past, communicating technology was limited to a few expensive, proprietary thermostats. Now, ComfortBridge™ Technology technology is installed securely in Amana® brand furnace and air handler equipment, providing you consistent, energy-efficient home comfort.
You can be assured that your Amana brand air conditioner will provide you with quiet operation. To minimize operating sounds, we’ve acoustically engineered our systems with enhancements such as a specially designed sound-control top.
Energy efficiency equates to cost savings. Your Amana brand AVXC9 Air Conditioner offers up to 22.5 SEER2 energy-efficiency performance. “SEER2” stands for Seasonal Energy Efficiency Ratio, a measure used by the U.S. Department of Energy to rate the cooling efficiency of air conditioners and heat pumps. Rated Most Efficient of ENERGY STAR® in 2023. Products that are recognized as the Most Efficient of ENERGY STAR® in 2023 prevent greenhouse gas emissions by meeting rigorousenergy efficiency performance levels set by the U.S. Environmental Protection Agency.
The higher the SEER2, the greater the efficiency— and the lower the operating cost. Compared to lower SEER2 units found in many homes, an Amana brand AVXC9 Air Conditioner provides significant savings on your electric bill.
Product Limited Warranty
The compressor in your new system is covered by a Lifetime Unit Replacement Limited Warranty* on air conditioner and heat pump models, If the compressor fails in use at the original registered homeowner’s residence, a condenser will be provided at no charge. The functional parts in your Amana brand ASXV9 Air conditioner system are covered by a 10-Year Parts Limited Warranty*. For a full description of this warranty, please see your local Amana dealer or click on the consumer brochure.
The owner of this central air conditioning system will appreciate the energy savings and money-saving comfort that this product delivers (compared to lower SEER2 products). Further, the unit features an attractive louvered metal coil guard that protects the coil from damage plus a powder-paint finish that provides premium durability and improved UV protection.
• Variable-speed swing and scroll compressors
• High-density compressor sound blanket
• Integrated communicating ComfortBridge™ Technology
• Commissioning and diagnostics via indoor board Bluetooth with the CoolCloud™ phone and tablet application
• Variable-speed DC outdoor fan motor
• Control algorithmic logic
• In communicating mode, only two low-
voltage wires to outdoor unit required
• Diagnostic indicator lights, seven-segment LED display, and fault code storage
• Field-selectable boost mode increases compressor speed during unusually high loads
• Field-installed bi-flow filter drier
• Coil and ambient temperature sensors
• Heavy-gauge, galvanized-steel cabinet • Removable grille-style top design compliant with UL 60335-2-40
• Venturi for increased velocity of airflow
• Baked-on powder-paint finish • 500-hour salt-spray tested
• Wire fan discharge grille
• Steel louver coil guard
• Top and side maintenance access
• Sweat connection service valves with easy access to gauge ports
• Single-panel access to controls with space provided for field-installed accessories
