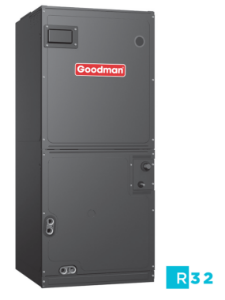

AMVT48CP1300 Multi-Position, Air Handler, ECM, 3.5-4 Ton, R-32, TXV, Communicating, ⅜" Liq., 7/8" Suct., 21-1/8 in. W x 21 in. D x 58 in. H, 153 lbs.
Air Handler
R-32 Multi-Position, Variable-Speed
ECM-Based Air Handler with Internal TXV
ComfortBridge™ Compatible
1½ to 5 Tons
A system that works smarter.
Revolutionary ComfortBridge™ technology is factory-installed into select Goodman brand gas furnaces and air handlers to ensure that the entire system operates at peak, energy-efficient performance. Simply put, communications technology that is typically located in a thermostat was moved from the wall and securely placed into the HVAC equipment!
Internal factory-installed thermal expansion valves for cooling and heat pump applications
Variable-speed ECM blower motor
Integrated communicating ComfortBridge™ Technology
Commissioning and diagnostics via on board Bluetooth with the CoolCloud™ phone and tablet application
Auto configuration of the airflow and tonnage in communicating mode
AMVT*3 muti-position air handlers with thermal expansion valves (TXV) engineered for compatibility with R-32 low global warming potential (GWP) refrigerant.
Refrigerant Detection System (RDS)
It is imperative that an R-32 indoor air handler be appropriately matched with an R-32 outdoor unit. All air handlers matched for use with an R-32 system must include the required Refrigerant Detection System (RDS) for R-32 systems. The new AMVT*3 air handlers are shipped from the factory with RDS included in the printed circuit board (PCB). The new AMVT*3 air handlers are not backwards compatible for use with R-410A systems.
System matched R-32 air handlers are equipped with a sensor in the airflow which is connected to the PCB. When R-32 refrigerant is detected, the PCB will interrupt the cooling and heating demand and keep the blower running until the R-32 refrigerant level detected has fallen below a set threshold.
Zoning and Accessory Control Kit (Part# 0230K00007)
For all R-32 systems with new or existing zoning or indoor air quality accessories, a Zoning and Accessory Control Kit must be installed as part of the leak detection system.
New AMVT*3 Matched Ratings
Ratings are available in the AHRI directory. Additional ratings will be added as they become available.
Electric Heat Options
Electric heat options are available from 3 to 25 kW for AMVT*3 models.
AMVT*3 Main Features
• Thermal Expansion Valve (TXV) for cooling and heat pump applications
• All-aluminum evaporator coil
• Coil mounting track for quick repositioning
• Fan is variable speed, electronically commutate motor (ECM)
• Integrated communicating ComfortBridge technology
• Commissioning and diagnostics via on board Bluetooth® technology with the CoolCloud phone and tablet application
• Auto configuration of the airflow and tonnage in communicating mode
• Provides constant cubic feet/minute (CFM) airflow over a wide range of static pressure conditions independent of duct system
• CFM indicator
• Fault recall of six most recent faults
• Humidity and comfort control
• Rigid SmartFrame cabinet
Product Limited Warranty
All functional parts are covered by a 10-Year Parts Limited Warranty*. For a full description of all warranties applicable to this product, please download the warranty information.
At Goodman, we believe in American dependability. Units are designed, engineered and assembled in the U.S.A.
