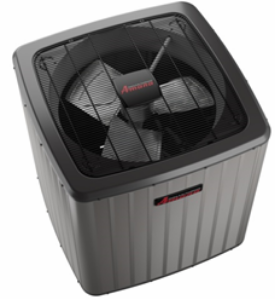

Amana ASXC704810 4 Ton, 17.2 SEER2 Air Conditioner, Two Stage Scroll Compressor, 1/3HP ECM Condenser Fan Motor, ⅜" Liq. ⅞" Suct., 45A 208/230-1, 35-1/2"W x 35-1/2"D x 41-5/8"H, 276 lbs.
ASXC7 - Air Conditioners
High-Efficiency Air Conditioner Up to 17.2 SEER2 Performance
Two-Stage Copeland Ultra-Tech scroll compressor
Quiet two-speed ECM outdoor fan motor
Integrated communicating ComfortBridge™ Technology
Commissioning and diagnostics via Bluetooth indoor board via CoolCloud™ App
Copeland® ComfortAlert™ built in diagnostics
You can be assured that your Amana brand air conditioner will provide you with quiet operation. To minimize operating sounds, we’ve acoustically engineered our systems with enhancements such as a specially designed sound-control top.
Copeland® CoreSense Diagnostics
Constantly monitoring the performance of your Amana® brand air conditioner, this advanced diagnostics system provides insight for accurate troubleshooting and quick diagnosis and repairs. Using the compressor as a sensor, CoreSense Diagnostics delivers active protection and will proactively shut the system down should it detect conditions that could damage the compressor. As a result, catastrophic failures and extensive, costly repairs are often avoided.
Energy efficiency equates to cost savings. Your Amana brand ASXC7 Air Conditioner offers up to 17.2 SEER2 energy-efficiency performance.
Rated Most Efficient of ENERGY STAR® in 2023. Products that are recognized as the Most Efficient of ENERGY STAR® in 2023 prevent greenhouse gas emissions by meeting rigorousenergy efficiency performance levels set by the U.S. Environmental Protection Agency.
Product Limited Warranty
The compressor in your new system is covered by a Lifetime Unit Replacement Limited Warranty* on air conditioner and heat pump models, If the compressor fails in use at the original registered homeowner’s residence, a condenser will be provided at no charge. The functional parts in your Amana brand ASXC7 Air conditioner system are covered by a 10-Year Parts Limited Warranty*. For a full description of this warranty, please see your local Amana dealer or click on the consumer brochure.
• Two-Stage Copeland Ultra-Tech scroll compressor
• Quiet two-speed ECM outdoor fan motor
• Integrated communicating ComfortBridge™ Technology
• Commissioning and diagnostics via Bluetooth indoor board via CoolCloud™ App
• Copeland® ComfortAlert™ built in diagnostics
• Copper tube/ enhanced aluminum fin coil-5mm on 2.0-3.0T
• Color-coded terminal strip for non-communicating set-up
• Only two low-voltage wires required in communication mode
• Factory-installed filter drier
• Factory-installed transformer
• Factory-installed high and low-pressure switches
• High-density foam compressor sound blanket
• Fully charged for 15’ of tubing length
• Ambient temperature sensors
• Ground lug connection
• AHRI Certified - ETL Listed
• Removable grille-style top design compliant with UL 60335-2-40
• New venturi for improved airflow and less noise
• Heavy-gauge galvanized steel cabinet
• Baked-on powder-paint finish with 500-hour salt-spray approval
• Steel louver coil guard with Rust-resistant screws.
• Top and side maintenance access
• Single-panel access to controls with space for field-installed accessories
• Service valves with sweat connections and easy-access gauge ports
