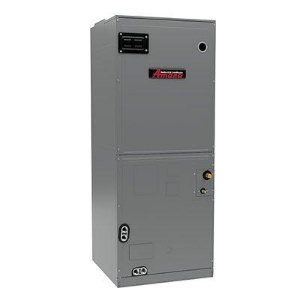

The AHVE60DP1400 HVAC unit is a high-capacity system designed for residential or light commercial applications. It has a cooling capacity of 60,000 BTU and a heating capacity of 60,000 BTU, making it suitable for larger-sized spaces.
Product Features Cabinet Features
• Electronic Expansion Valve (EEV) for cooling and heat pump applications.
• 7mm evaporator coil tube size
• Variable-speed ECM blower motor
• Compatible with Amana® brand smart thermostat
• Provides constant CFM over a wide range of static pressure conditions independent of duct system
• CFM indicator
• Thermostat provides adjustable lowCFM for efficient fan-only operation
• All-aluminum evaporator coil
• Fault recall of six most recent faults
• Improved humidity and comfort control
• AHRI certified; ETL listed
• Coil mounting track for quick repositioning
• Rigid SmartFrame™ cabinet
• Cabinet air leakage less than 2.0% at 1.0 inch H₂O when tested in accordance with ASHRAE standard 193
• Cabinet air leakage less than 1.4% at 0.5 inch H₂O when tested in accordance with ASHRAE standard 193
• Horizontal or vertical configuration capabilities
• 21" depth for easier attic access
• DecaBDE-free thermoplastic drain pan with secondary drain connections
• Screw-less sides and back helps to reduce condensation when installed in humid locations
• Foil-faced insulation covers the internal casing to reduce cabinet condensation
• Galvanized, leather grain-embossed finish
• Glue-less cabinet insulation retention
• Tool-less filter access
