Sorry - this product is no longer available

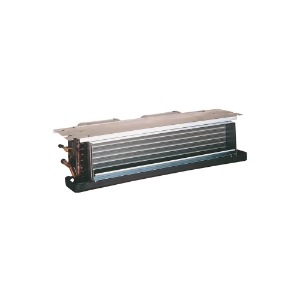

ACSF24LN1606 Goodman® ACSF 1-Piece Uncased Air Handler, 2 ton, 24000 BtuH Cooling, 208/230 V, 1 Phase, 6kw

Goodman® ACSF24LN1606 1-Piece Uncased Air Handler, 2 ton, 24000 BtuH Cooling, 208/230 V, 1 Phase, 6kw
SKU: GMN-ACSF24LN1606
Manufacturer part number: ACSF24LN1606
Manufacturer:

Goodman Manufacturing


Please Sign In to display product price.

Goodman® ACSF Air Handler, 1-Piece, Uncased, 2 ton, 24000 BtuH Cooling, Dedicated Horizontal, 3/8 Inch Liquid Line, 3/4 Inch Suction Line, 208/230 V, 1 Phase, 35 A Fuse, Ceiling Mount, Steel Cabinet, Galvanized, For Use With: R-410A and R-22 Refrigerants

The Goodman® ACSF24LN1606 is a ceiling-mounted, multi-speed air handler with a check flowrater. It has top-of-the-line, all aluminum tube and fin coil components. This Goodman® air conditioner comes from the ACSF line of ceiling-mounted air handlers. It features a blower cooling capacity of 2 tons with a nominal cooling rating of 24,000 BtuH . It has a rust-resistant and sequence-controlled nickel chromium heating elements that feature an electric heat capability of 6 kW. For effective cooling, this air handler uses a direct drive, resilient-mount, multi-speed ECM motor. This ceiling-mounted air handler comes with many impressive features that make it a great choice for your home. This model features a galvanized steel construction with a factory installed pull type disconnect. It operates quietly and offers easy service access for easier maintenance. Plus, a primary-secondary drain connection in a high temperature plastic drain pan helps regulate moisture created by air conditioning.

  • All aluminum tube/aluminum fin coil
  • Direct drive, resilient-mount, multi-speed motor
  • Sequence-controlled and rust-resistant nickel chromium heating elements of 6 kW
  • High efficiency evaporator coil
  • Quiet operation
  • Available with and without heat
  • Primary-secondary drain connection in a high temperature plastic drain pan
  • Suitable for free return installation
  • Factory installed pull type disconnect
  • Easy service access
  • 5-3/4 Inch dia x 6-3/4 Inch width blower
  • Coil connections: 3/4 Inch coil drain connect (FPT)
  • 34 minimum circuit ampacity at 230 V
  • 35 A maximum overcurrent device at 230V

Standard/Approvals: AHRI Certified, ETL Listed, ISO:9001 Certified

Application: Cooling and Heat Pump



Products specifications
Attribute nameAttribute value
ConfigurationDedicated Horizontal
Electrical Ratings208/230 V, 60 Hz, 1 Phase
Fuse Size35 A
Heater Wattage6 kW
Liquid Line Size3/8 Inch
Mounting TypeCeiling
Nominal Capacity2 ton
Suction Line Size3/4 Inch
Suitable For Use WithR-410A and R-22 Refrigerants
Type1-Piece, Uncased
