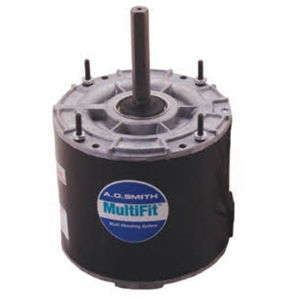

9722 Century 5" Multi Horse Power Motor (208-230V, 1075 RPM, 1/8-1/12 HP)
Features:
Multi-Mounting System
Single speed multi-horsepower replacement motor uses one simple connection
Energy-efficient PSC design
Easy-to-read connection diagram attached to white lead wire
Water-resistant reversing plug
Double sealed ball bearings for dependable long life
Rubber shaft slinger keeps water and dirt out of motor
Water-resistant rubber grommet at lead opening
60°C max ambient
Class B insulation
Lead length 36"
60 Hertz
Totally enclosed
Continuous duty, air over
All-angle mount
UL and CSA recognized
Specifications
Type: Permanent Split Capacitor
Horsepower: 1/8, 1/10, 1/12
Bearings: Ball
Voltage: 230V
RPM: 1075
Duty: Air Over
Mount: Extended Studs
Poles: 6
Enclosure Type: Totally Enclosed
Rotation: Reversible
Speeds: 1
Hertz: 60
Frame: 42
Amperage: 0.9
Phase: 1
Insulation Class: B
Overload Protection: Automatic
Diameter (Inches): 5"
Max Ambient Temp (°F): 140°F
Motor Orientation: Any
