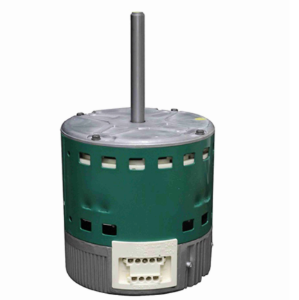

6507V Genteq EVERGREEN® VS Fan and Blower Motor, 3/4 HP, 1 Ph, 60/50 Hz, 120/240 V, 1050 RPM, 1 Speed, 48 Frame, OPAO
KEY FEATURES
Evergreen VS - ECM Variable Speed Replacement Motor
5.6" Diameter - 48 Frame
Electronically Commutated (ECM)
Electronically Protected
Open Air Over
Class B Insulation, 55°C Ambient
Ball Bearing
1/2" Diameter Shaft with Flat
36" Leads
***Application May Require User Interface Catalog Number 5K010 or 5K010V. For Additional Information Refer to “Evergreen® VS Motors” Product Page, or Search “Motor Cross Reference” in “Tools & Resources” for OEM Replacement Cross.
Product Specifications
Phase:1
Output HP:3/4 Hp
Output KW:0.56 kW
Voltage:120/240 V
Speed:1050 rpm
Service Factor:1
Frame:48
Enclosure:Open Air Over
Thermal Protection:Thermally Protected
Ambient Temperature:40 °C
Frequency:60/50 Hz
Current:10.1/6.1 A
Duty:Continuous Air Over
Insulation Class:B
UL:No
CSA:N
CE:Y
A2L Status:A2L Certified
Number of Speeds:1
