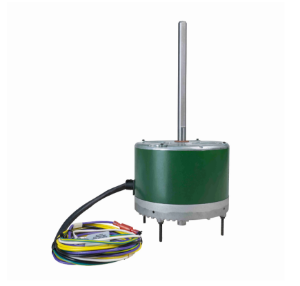

6303S Genteq EVERGREEN® OM Condenser Fan Motor, 1/3 HP, 1 Ph, 60/50 Hz, 208-230 V, 825/1075 RPM, 2 Speed, 48 Frame, CLOSEDAO
Features
Evergreen OM - Retrofit Condenser Fan Motor (Replaces PSC and Shaded Pole Motors)
Electronically Commutated (ECM), Electronically Protected
1/3 HP (Replaces 1/3-1/12). Two Operating Speeds (Constant Speed), 1075 RPM replaces motors rated 1000-1100 RPM, 825 RPM replaces motors rated 800-850 RPM
208-230 Voltage (Allowable Voltage Range 196-264), Single-Phase Input, 50-60 Hz, Totally Enclosed Air Over
Class B Insulation, -20 to 60°C Ambient
Rotation: Reversible (Factory Set To CCW Lead End)
Permanently Lubricated Ball Bearing
Shaft: 1/2” Diameter, 6.5” Length, 6” Single Flat
Leads: 54” Length With 1/4” Fast On Terminals, Ground Wire #10 Eyelet
Mounting: Horizontal or Vertical Shaft-down, Belly Band (Not Supplied With Motor), Extended Clamp Bolts, or OEM Mounting Holes
Nameplate Specifications
Phase: 1
Output HP: 1/3 Hp
Voltage: 208-230 V
Speed: 825/1075 rpm
Service Factor: 1
Frame: 48
Enclosure: Totally Enclosed Air Over
Thermal Protection: Electronically Protected
Ambient Temperature: 40 °C
Frequency: 60/50 Hz
Current: 2.8 A
Duty:Continuous Air Over
Insulation Class: BUL:No
A2L Status: A2L Certified
Number of Speeds: 2
Technical Specifications
Electrical Type: Electronically Commutated Motor
Poles: 10
Rotation: Counterclockwise/Clockwise
Mounting: Extended Studs
Motor Orientation: Vsd
Drive End Bearing: Ball
Opp Drive End Bearing: Ball
Frame Material: Rolled Steel
Shaft Type: Flat
Overall Length: 10.98 in
Frame Length: 2.82 in
Shaft Diameter: 0.500 in
Shaft Extension: 6.50 in
General Specifications
UPC: 818508029221
Weight: 13.00 LB
Packaged Length: 15.70 IN
Packaged Width: 6.70 IN
Packaged Height: 7.10 IN
Country of Origin: Mexico
