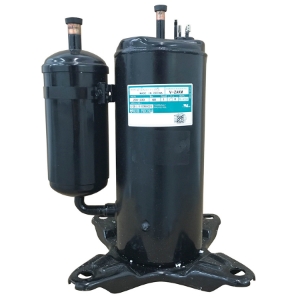

Rechi 5VS250FAC21S Rotary Compressor, 2‑Ton Class, ~20,000–25,000 BTU/hr, R‑410A, 208/230V‑1‑60
The 5VS250FAC21S is a 2‑ton‑class rotary compressor used across multiple OEM platforms, delivering approximately 20,000–25,000 BTU/hr of cooling capacity for R‑410A systems. Designed for 208/230V single‑phase 60‑Hz operation, this compressor provides dependable performance in residential AC and heat‑pump applications, offering a compact, service‑friendly design suitable for a wide range of equipment.
Technical Specifications
- Model: 5VS250FAC21S
- Compressor Type: Rotary
- Capacity: ~20,000–25,000 BTU/hr (2‑Ton Class)
- Refrigerant: R‑410A
- Voltage: 208/230V
- Phase / Frequency: 1‑Phase, 60 Hz
- Application: Residential AC / Heat Pump
- Shipping Weight: 38.3 lbs
- Shipping Dimensions:
- Width: 12.50 in
- Length: 12.60 in
- Height: 16.70 in
- OEM Fit: Select Goodman, Amana, and Daikin models
- Compliance: UL Listed; ASME Y14.100 documentation standards
- Field replacement requiring OEM fit and performance match
