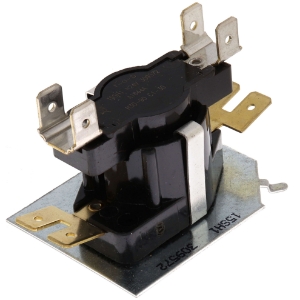

White-Rodgers™ 24A34 Heat Sequencer, Electric, 1 Switches, 1 Timings, 30-90 sec Switch On, 1 - 30 sec Switch Off, Full Load Amperage (FLA) 120/240 Vac: 14.0/7.0 A Locked Rotor Amperage (LRA) 120/240 Vac: 72.0/42.0 A Pilot Duty 120/240/480 Vac: 125/125/480 VA Resistive 120/240/480 Vac: 25.0/25.0/12.5 A Resistive 120/240/480 Vac: 3000/6000/6000 W, Multi-Poise Mount
- Any contacts (except M1 and M2) can be used as auxiliary contacts
- Double quick-connect terminals for combination loads
Standard/Approvals: UL Listed
Application: Heat Pump Air Handlers
